Test
Article: 206811719
- Industrial 4G Router with Dual LTE Cat.4 Module Support
- Wi-Fi 5
- GPS
-
Type:4G/LTE router, LTE router
-
Maximum Ethernet speed:100, 1000
-
Number of LAN ports:1, 2, 4, 5
-
Number of cellular modules (GSM):1, 2, 4
-
LTE category:Cat 4, Cat 6, Cat 12
-
5G Category:RedCap, NSA/SA, mmWave
-
Serial interfaces:RS232 (1–3), RS485 (1–3)
-
Wi-Fi support:802.11ax, 802.11ac, 802.11g/n
Description

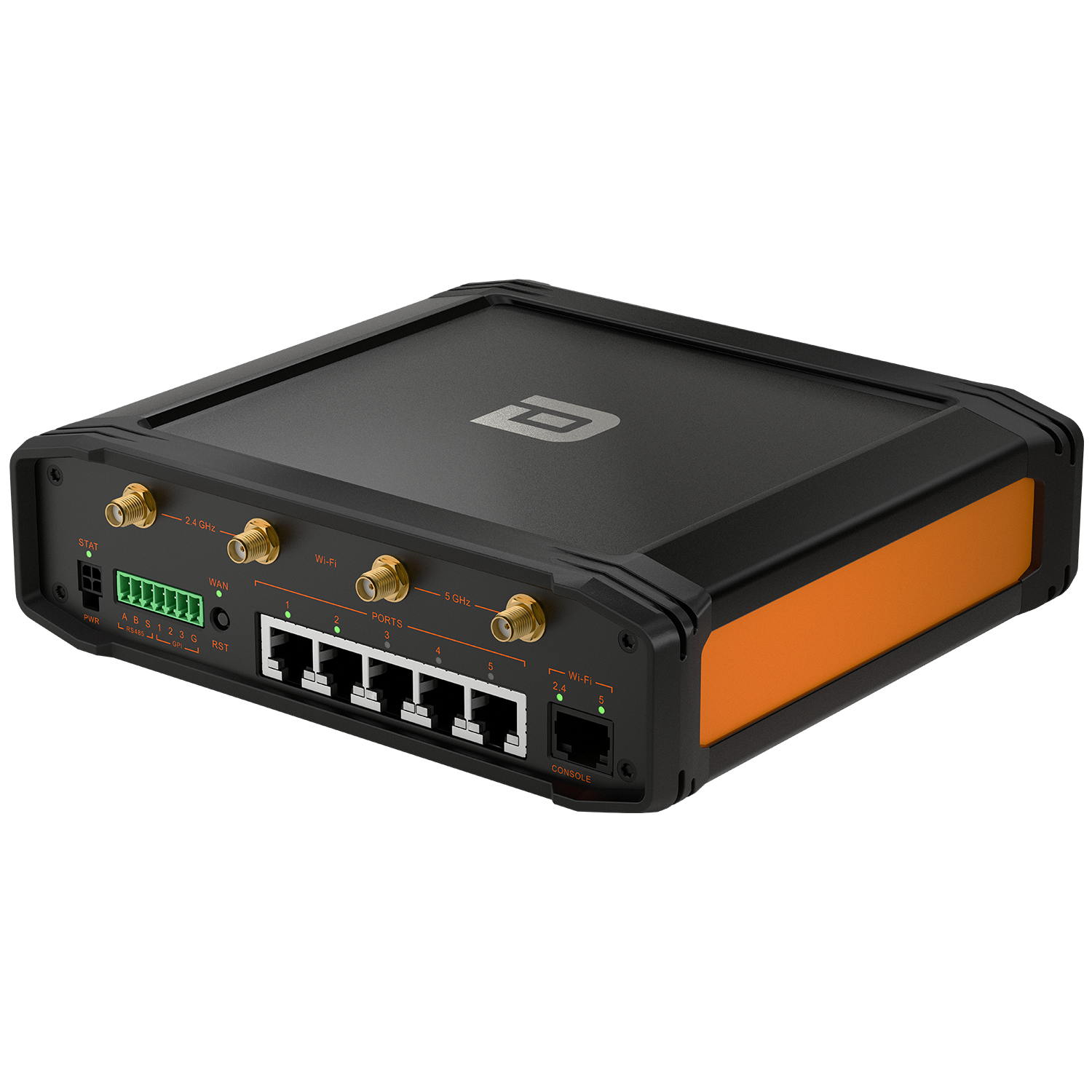

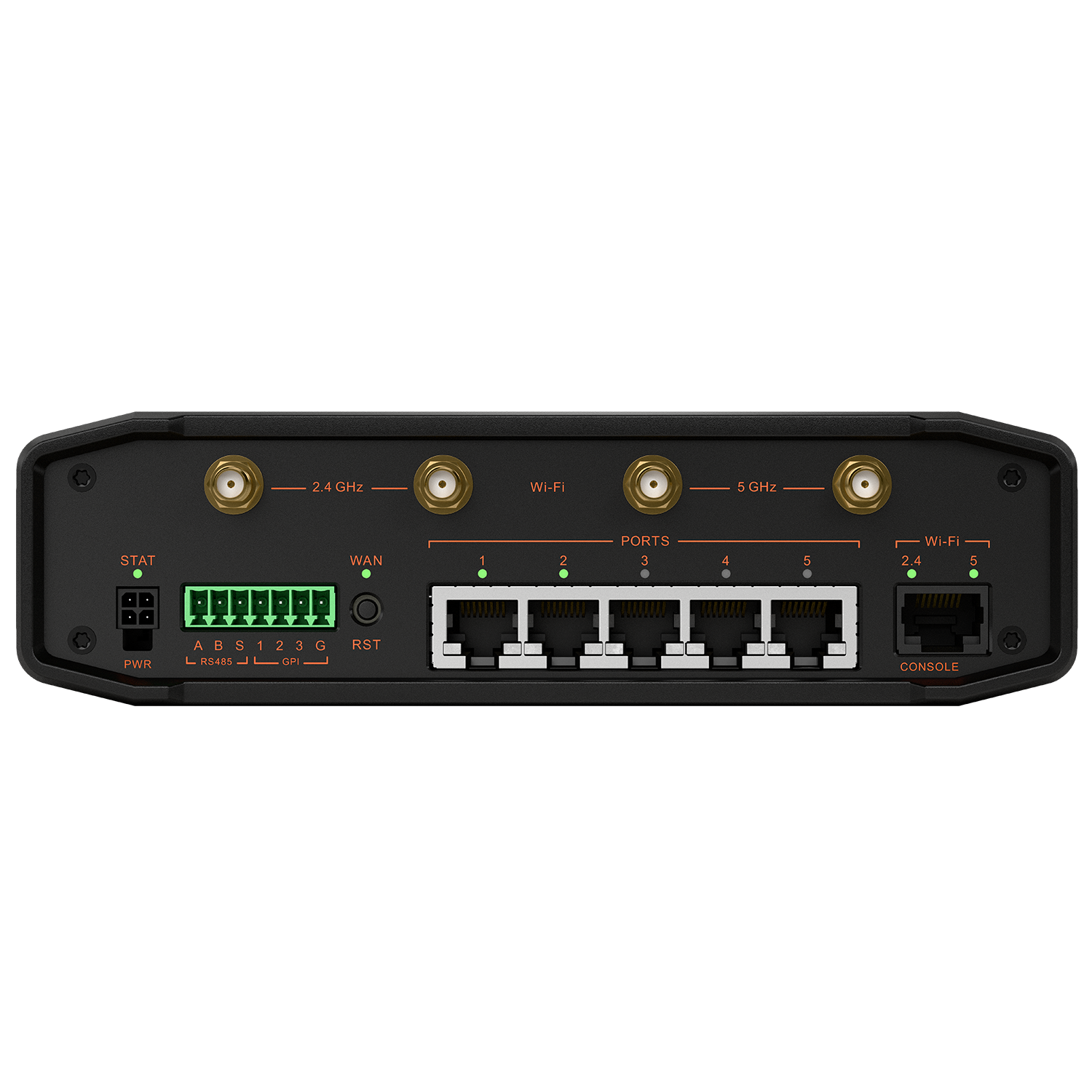

Ports and Connectors
- Ethernet Connector: 5x LAN 10/100/1000 Mbps
- SIM Card Slots: Mini SIM
- CONSOLE Connector: RJ45 Console Port
- Microfit4 Connector: Power
- Breakaway Terminal Connector: RS485, 3 x GPI
- RST Button: Reset Button
Security Features
- Authentication: Pre-shared key, digital certificates, X.509 certificates
- Firewall: Pre-configured firewall rules (managed via Web), unlimited firewall configuration; DMZ; NAT; NAT-T
- Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN: Port and tag based VLAN separation
- Access control: WiFi access control (MAC address filter)
Communication Standards
- LTE Cat 4, Wi-Fi 4, Wi-Fi 5, GNSS
Hardware Specifications
- Number of Cellular Modules: 2 x LTE Category 4
- Processor: Quad-core ARM Cortex A7 717MHz
- Dynamic RAM: 512 MB
- NAND Flash Memory Capacity: 256 MB
- Wi-Fi: 2.4 GHz (802.11a/b/g/n), 5 GHz (802.11ac)
Physical Specifications
- Product Dimensions (including connectors) – up to 170.5x172x44 mm (LxWxH)
- Product Weight -not more than 870 g
- Enclosure Material – Aluminum
- Enclosure Protection Rating – IP30
- Operating Temperature Range – from -40°C to +65°C
Network Functions
- Routing: Static and dynamic routing (OSPFv2, BGP)
- Network Protocols: PPP, PPPoE, IPoE (Static, DHCP Client), TCP, UDP, ARP, IPv4, ICMP, HTTP, HTTPS, TLS, SSL
- Connection Monitoring Ping Reboot, Periodic Reboot, LCP and ICMP for link tracking
- Firewall: Port forwarding, ZONE-based rules, NAT helpers (H.323, SIP-alg, etc), preconfigured firewall rules, custom rules
- DHCP: Static and dynamic IP address allocation, DHCP Relay, Relayd
- DDNS: Quick settings for major providers and manual setup options for others
- Network Backup: VRRP; Wired, Mobile, or WiFi WAN. Supports automatic failover to an alternativeconnection (Automatic Failover)
- Network Services: DHCP Server, NTP, DNS, VRRP, SSH, UPNP, SNMP, Telnet client, SMTP, NTRIP Client
Electrical Specifications
- Power supply voltage from 10 to 30 V (DC)
- Current consumption, maximum
- At power supply voltage +12 V – 1500 mA
- At power supply voltage +24 V – 750 mA
Tunneling
- OpenVPN: Ability to run multiple clients and servers simultaneously
- OpenVPN: Encryption: AES-128-CBC, AES-192-CBC, AES-256-CBC
- IPsec: IKEv1, IKEv2. Supported encryption algorithms: 3DES, AES128, AES192, AES256
- GRE: GRE TUN (Layer 3), GRE TAP (Layer 2)
- EoIP: MikroTik RouterOS protocol based on GRE RFC 1701
- PPTP, L2TP: Client mode support for L2TPv2, L2TPv3
- DMVPN: Client mode operation, additional IP Security encryption
